Quick-connect fittings come in various sizes, ranging from 1/8 inch to 3/4 inch. The size of the quick-connect fitting determines its compatibility, water flow rate, and whether it will leak. Manufacturers name quick-connect fittings based on the inner diameter of the hose they are connected to. Quick-connect fittings are used in garden hoses, high-pressure cleaning machine systems, and many other fluid and air applications. GONGGONG produces stainless braided hose and nylon braided hose for sanitary, construction, and industrial purposes.
Key Takeaways
- Quick-connect fittings come in various sizes, ranging from 1/8 inch to 3/4 inch. Choosing the right size ensures a perfect fit with the pipe and guarantees smooth water flow.
- Before purchasing, please be sure to measure the inner diameter and thread type of the hose. This step can prevent water leakage and returns.
- Mixing products of different sizes or standards may lead to leakage and pressure drop. For optimal results, please use products of a uniform size and standard.
Common Sizes of Quick Connect Hose
Standard sizes and typical uses
Quick-connect fittings come in various sizes to accommodate different hoses and pipes. Common pipe thread sizes include 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch. This size range is suitable for applications ranging from small pneumatic tools to large garden hose systems.
Garden hoses typically use quick-connect fittings of 3/4 inch and 5/8 inch. These sizes can meet normal outdoor water flow needs. Quick-connect fittings for high-pressure cleaners have their own size specifications, and users must check their equipment to find the appropriate accessories. For medium-flow tasks, 3/8 inch hoses are usually matched with 3/8 inch fittings.

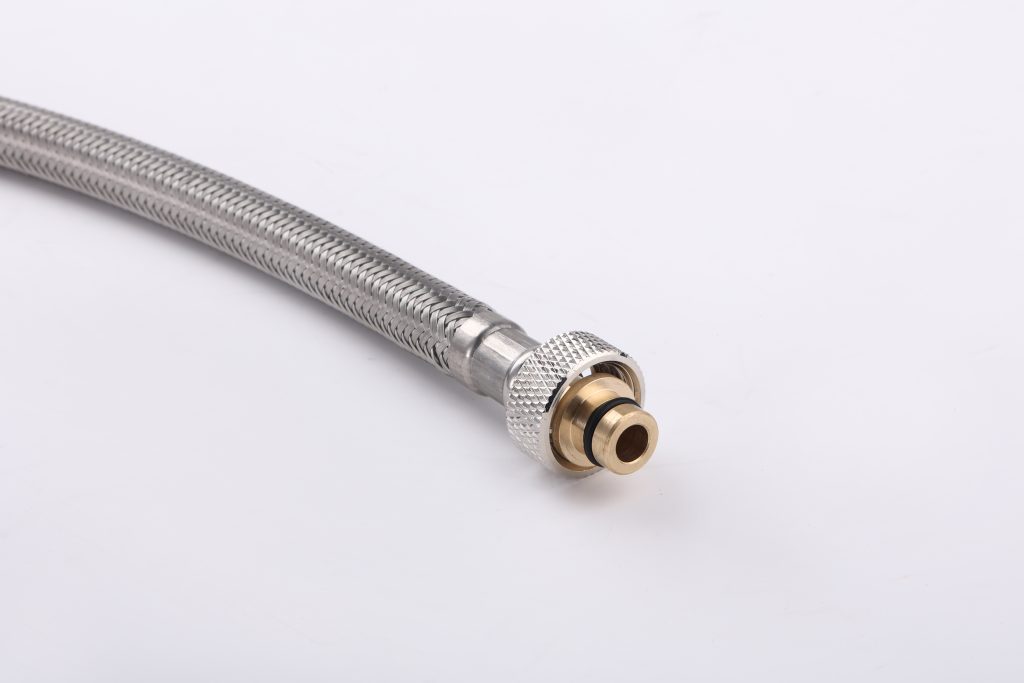

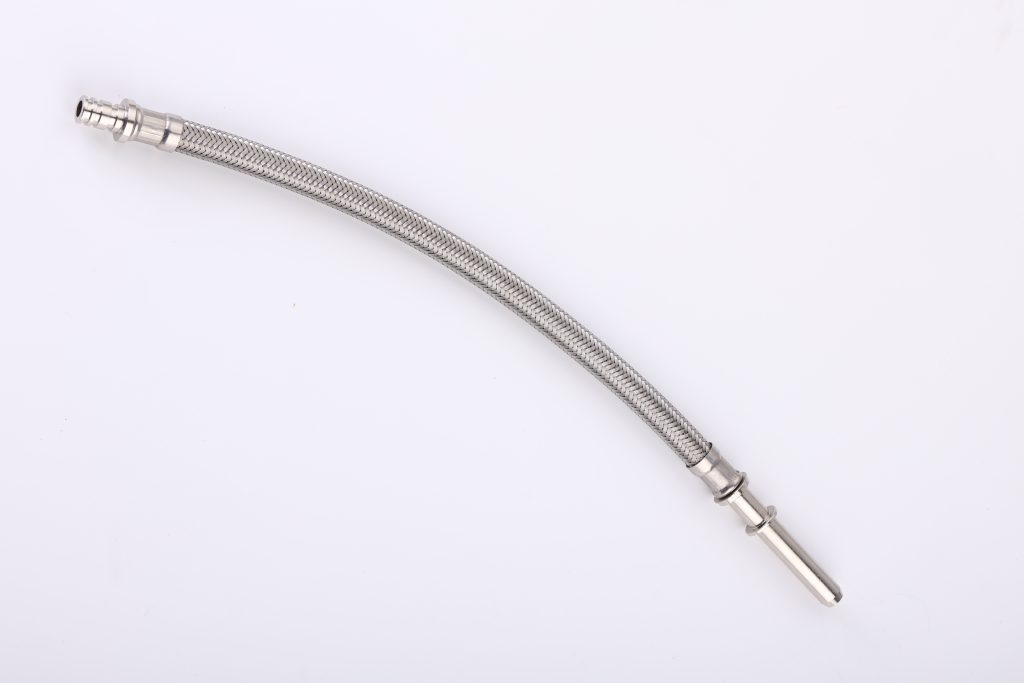

GONGGONG braided hoses are among the products that can be customized in terms of length and diameter. Manufacturers can adjust these hoses to fit specific installation spaces. This flexibility avoids stretching, kinking, and flow reduction. Buyers requiring wholesale quantities can set precise dimensions for their projects.
How size impacts flow and pressure
The inner diameter of a quick connector directly affects flow rate and pressure transmission. An improperly designed air hose quick coupling can act like a bottleneck, impeding airflow. It reduces the cubic feet per minute (CFM) flow available to pneumatic tools. High-flow couplings utilize internal components that minimize turbulence, allowing quick disconnect systems to deliver more power to pneumatic accessories.
Correct sizing is crucial. A connector that is undersized can negate the benefits of a larger air hose. A properly sized and well-made quick connector should not cause a significant drop in pressure. However, a poor-quality or undersized connector may restrict airflow. These restrictions can reduce the pressure delivered to the tool.
The following table illustrates the relationship between pipe size and air consumption:
| Pipe size (in.) | Consumption (scfm) |
|---|---|
| 1/4 | 15 |
| 3/8 | 30 |
| 1/2 | 50 |
The size of a quick connect coupling is determined by two factors: the connection size and the body size. The connection size is determined by the hose or pipe fitting that connects to the coupling. The body size is determined by the required air flow rate. Most couplings are used in conjunction with pneumatic tools that require an inlet pressure of 90 pounds per square inch (psi). The normal factory compressor output pressure ranges from 100 to 125 psi. The pressure drop allowed at the coupling is usually small. Based on the general rule of 90 psi inlet pressure and 2 psi pressure drop, it helps to select the coupling body size according to the flow demand.
The internal flow area of quick-connect fittings is often surprisingly narrow. Before selecting, please check its inner diameter and confirm the specifications to ensure that it does not obstruct airflow in the system.
When selecting accessories and quick connectors, it is necessary to collaborate with suppliers to confirm that their rated pressure can withstand the maximum pressure of the compressor system, so as to avoid causing too much pressure drop at the required flow rate.
Measuring for Different Quick Connect Hose Sizes
Inside diameter and thread type
The inlet thread size of quick-connect fittings informs the buyer of the correct fitting size to ensure optimal flow and compatibility. This number cannot be guessed and must be determined through measurement. Once the inspection target is known, the measurement of quick-disconnect fittings follows simple rules.
For natural gas quick-connect fittings, the size of the female quick-connect fitting typically matches the inner diameter of the hose. The female end of a 3/8-inch natural gas quick-connect fitting or coupler has an inner diameter of approximately 5/8 inch. The female end of a 1/2-inch natural gas quick-connect fitting or coupler has an inner diameter of approximately 3/4 inch. These numbers reveal an important rule: quick-connect fittings are named based on the hose they fit, not their own inner diameter. The female quick-connect fitting must match the outer diameter of the male end of a natural gas or propane hose. This means that the inner diameter of the female fitting is always larger than the nominal size of the hose it is paired with.
| Quick Disconnect Fitting Size | Female End Inside Diameter |
|---|---|
| 3/8″ Natural Gas Quick Disconnect Nipple/Coupler | ~5/8″ |
| 1/2″ Natural Gas Quick Disconnect Nipple/Coupler | ~3/4″ |
If buyers are negligent when measuring gas fittings, they may choose the wrong size of quick connector. The result could be either a loose connection or the fitting failing to install properly. GONGGONG supports buyers through quality control, helping them make informed choices when comparing suppliers of natural gas or propane hose products.
Metric vs. imperial standards
Thread standards vary globally. These differences alter the way people interpret quick-connect dimensions. Metric threads dominate in Europe, Asia, and most other parts of the world. Imperial threads, including the NPT size standard, are predominant in North America and in industries adhering to ANSI, BSP, or NPT standards.
| Aspect | Metric Threads | Imperial/US Threads (incl. NPT) |
|---|---|---|
| Dominant regions | Europe, Asia, and much of the rest of the world | North America; industries following ANSI/BSP/NPT |
| Governing standards | ISO | ANSI, BSP, NPT |
| Measurement | Pitch in millimeters | Threads Per Inch (TPI) |
| Thread profile | 60° equilateral | 55° isosceles |
| Typical applications | Automotive, precision machinery, compact systems | Hydraulic systems, gas pipelines, oil drilling, fire safety |
| Sealing | Usually needs O-rings | Often self-sealing (e.g., NPT) |
Three metric systems are most commonly used. DIN metric threads are one of the most frequently used types in Europe. JIS metric threads are found on equipment in Japan and South Korea. Komatsu metric threads are exclusively used on Komatsu mobile equipment. G threads follow the imperial standard and are primarily found in the United Kingdom, Australia, and New Zealand.
These differences are crucial for quick-connect fittings and other equipment of high-pressure cleaning machines. Quick-connect fittings manufactured according to one standard cannot seal tightly with connectors manufactured according to another standard. Purchasers should confirm the thread standard before ordering. The correct size and matching standard can ensure leak-free operation of any quick-connect fitting system.
Choosing the Right Size for Pressure Washer Quick Connects
Matching fittings to your equipment
The quick-connect coupling sizes and standards of high-pressure cleaners vary depending on the brand and model. Users need to check their own equipment before purchasing any product. There are usually three common sizes of quick-connect couplings for high-pressure cleaners, each with different purposes.
| Size Marking | Common Applications |
|---|---|
| 1/4″ Quick-Connect | Spray guns, lances, and nozzles |
| 3/8″ Quick-Connect | High-flow hoses and pro-level washers |
| M22 Threaded Fittings | Hoses and pressure washer outlets |
The 3/8-inch quick connector is suitable for high-flow hoses and commercial pressure washers. The 1/4-inch quick connector is suitable for spray guns, spray bars, and nozzles. Most pressure washer quick connectors in North America use the NPT size standard. NPT measurements refer to the inner diameter of the pipe, not the outer diameter of the connector. Users should use a caliper to measure the inner diameter of the female connector or the outer diameter of the male connector. Many pressure washer connectors have size markings stamped on the body or clamp. Checking the thread type, connector size, and pressure rating before purchasing can help avoid high costs due to returns.
Adapters and when to avoid mixing sizes
Adapters can connect quick-connect fittings of different sizes, but it is a safer choice to keep all quick-connect fittings for high-pressure cleaners of the same size. Mixing different sizes increases the risk of leaks, pressure drops, and sudden disconnection. If the fitting size is too small and cannot match the system flow rate, it will hinder water flow and reduce cleaning efficiency. Low-pressure garden hose fittings can rupture under high pressure on the pump outlet side.
GONGGONG is an OEM/ODM partner and custom manufacturer specializing in the production of braided hoses, serving wholesale and distribution customers globally. The company holds multiple certifications, including WRAS, ACS, KTW/W270, WaterMark, ISO 9001, and CE.
GONGGONG’s hose solutions have passed rigorous certification for drinking water and hygienic performance standards, including WRAS (UK), ACS (France), KTW/W270 (Germany), and WaterMark (Australia), while also complying with ISO 9001 and CE standards.
When you have to adapt to different sizes, please only use high-quality adapters specifically designed for high-pressure cleaners. Do not force mismatched accessories together. Be sure to check whether the adapter matches the connection size, thread type, and pressure rating required by the machine.
The quick-connect fittings come in sizes ranging from 1/8 inch to 3/4 inch, and even larger. Please check the inner diameter and thread type to ensure they match. If you are unsure, you can consult a trusted manufacturer like GONGGONG. Their quick-disconnect connectors meet industry standards. The appropriate size ensures leak-free quick connections in pressure washers, pressure washer quick-connect systems, and any pressure washer applications.
FAQ
How do I know which size quick connect fitting I need?
Measure the inner diameter and thread type of the hose. Common sizes range from 1/8 inch to 3/4 inch. High-pressure cleaners typically use 1/4 inch or 3/8 inch connectors.
Can I use adapters to connect different pressure washer quick connect sizes?
Although adapters are available, mixing different sizes can increase the risk of leakage. Please ensure that all quick connectors of high-pressure cleaners are consistent. The accompanying quick connector system for high-pressure cleaners has better performance and longer service life.
Why does my pressure washer disconnect keep leaking?
Worn O-rings or incorrect dimensions can lead to leakage. Check the quick connector for damage. If the seal fails, replace the disconnected connector. If the quick connector of the pressure washer is correct, it can prevent leakage.
