Installing a shower hose is a simple DIY task that most homeowners can complete in just a few minutes. The process is straightforward: gather your tools, prepare the water outlet, attach the hose, and finally, check for leaks. Proper preparation and a secure seal will ensure the connection remains completely watertight. You can verify a successful installation by slowly turning on the water and checking the connection at the showerhead end.
Key Takeaways
- First, gather all the necessary tools. This will make the task quicker and easier.
- Clean the water outlet and wrap it with sealing tape in a clockwise direction. This helps prevent leaks.
- Slowly turn on the water supply and check all connections. This ensures that the installation is secure and leak-free.
Prep tools and water outlet
Tools for a leak-free fit
A smooth install starts with the right kit on hand. The table below lists the common items for a shower hose job.
| Category | Item | Purpose |
|---|---|---|
| Tool | Adjustable wrench | Loosen old fittings and snug new ones |
| Tool | Soft cloth | Wrap fixtures and protect finishes |
| Tool | Needle-nose pliers | Pry out old or stuck washers |
| Tool | Stiff brush | Scrub tape and mineral deposits from threads |
| Material | Plumber’s tape, 1/2-inch | Seal shower arm threads |
| Material | Replacement washers | Match the old size and seal the joint |
| Material | White vinegar | Dissolve mineral buildup |
Water supply pipes are typically 1/2 inch in size, though 3/4-inch pipes are also sometimes used. Be sure to verify the thread size before purchasing any adapters. A G1/2-sized fitting is compatible with most standard shower arms, while a G1/2 connection on the other end is generally suitable for attaching a showerhead. In cases where the threads do not match, a garden hose adapter can be used as a solution. Choosing high-quality hose fittings and connectors will help effectively prevent leaks at the connection points.
Shut off and inspect the water outlet
Safety first. Please turn off the shower valve or the main water supply. This prevents accidental spraying and protects the work area. Lay a towel inside the bathtub and cover the drain to ensure that small parts do not fall in and get lost.
Next, inspect the water outlet. Remove any old plumber’s tape, limescale, or debris from the threads, and check for scratches or cracks. If the outlet is worn, it must be addressed before making any connections. Cleaning the threads ensures that fittings sit flush and create a tight, secure seal. These preparatory steps also help ensure that the shower water supply system operates smoothly, quietly, and cleanly.
Install a shower hose step by step
Attach to water outlet with tape and washer
The way the first connection is handled determines the quality of the entire installation. For the water outlet, follow these steps:
- Wrap PTFE tape (plumber’s tape) clockwise around the threads of the pipe fitting. The direction of the wrap should align with the direction of the threads; this ensures that the tape tightens further as the fitting is screwed on, rather than coming loose.
- Place a rubber washer flat against the shoulder of the pipe fitting.
- Tighten the connection by hand first, then use a wrench to secure it further. Be careful not to overtighten, as this could crush the washer or cause the nut to crack.
Never wrap the PTFE tape in a counter-clockwise direction. If the wrapping direction is opposite to the thread direction, the tape will unravel during assembly, causing the seal to fail. Using too much tape can cause the same issue, as it may prevent the fitting from seating properly, with the excess tape clogging the threads. Generally, two to three clockwise wraps are sufficient.
The approach for a bathtub water outlet is slightly different. Use a faucet adapter that features external threads and an internal rubber washer. Screw the adapter’s external threads onto the end of the water outlet to convert the downward-facing spout into a standard hose connection. Apply PTFE tape to the threads, hand-tighten the adapter, and then attach the shower hose to the adapter’s outlet. To direct the water flow into the hose, you must use an adapter with a built-in diverter; otherwise, water will continue to flow from the original spout.
Connect shower head and check for leaks
Next, connect shower head hose to the showerhead. Screw the hose onto the showerhead connection by hand, then gently tighten the nut. The seal between the hose and the showerhead relies on an internal washer (gasket); therefore, if a washer is already present inside the nut, there is no need to use plumber’s tape (PTFE tape).
Slowly turn on the water supply and check both ends of the hose for leaks. Common signs of a leak include water seeping from the connection point, the appearance of white mineral deposits around the fitting, unusual dripping sounds, or water stains nearby. If a connection is loose, wrap the showerhead in a soft cloth and tighten it by hand in a clockwise direction until the dripping stops. If plumber’s tape was used, unscrew the fitting, remove any old tape residue from the threads, wrap the threads with two to three new layers of tape (in a clockwise direction), and reattach the fitting.

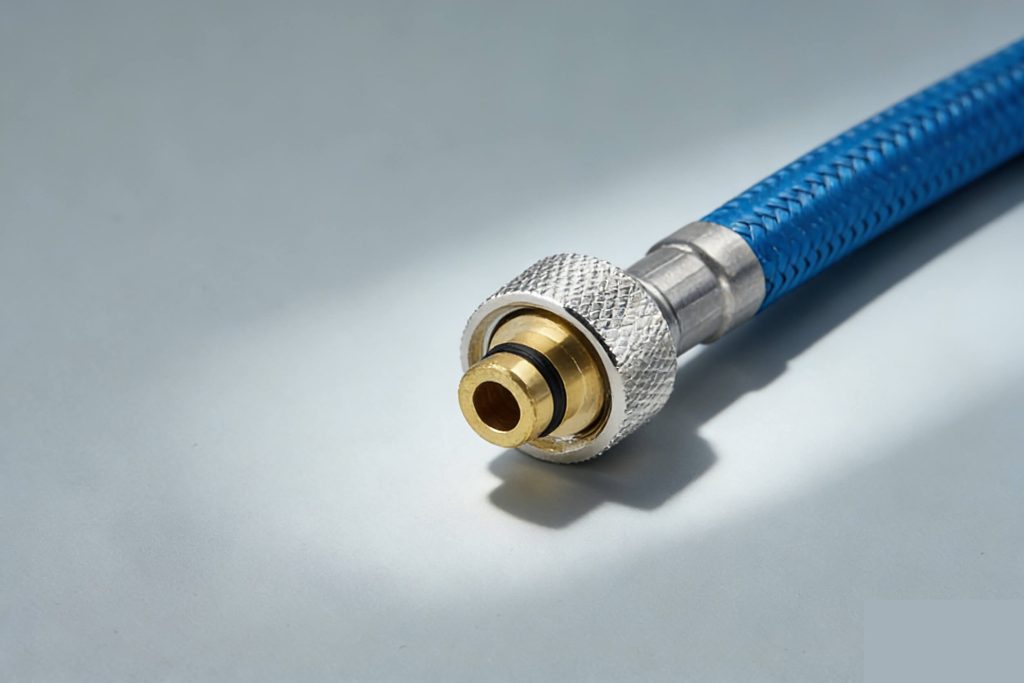

The quality of the hose determines the longevity of the seal. Established in 2000, GONGGONG is a leading manufacturer and supplier of braided shower hoses, providing wholesale and custom solutions for clients in the plumbing and construction industries. Their braided shower hoses feature a stainless steel outer layer, with inner tube options including EPDM (ethylene propylene diene monomer), PEX (cross-linked polyethylene), or PTFE (polytetrafluoroethylene). These products are certified by WRAS, ACS, and ISO 9001. The table below illustrates why these materials are ideally suited for demanding bathroom environments.
| Property | EPDM Core | 304 Stainless Braid | PEX Core |
|---|---|---|---|
| Continuous temperature | Up to 150°C | Up to 426°C | 160 psi at 73°F |
| Burst resistance | Moderate when reinforced | Excellent, roughly 4x working pressure | Good at ambient |
| Chemical resistance | Excellent vs. water and steam | Excellent vs. oxidation | Excellent vs. scale |
This type of hose is resistant to kinking, even in tight spaces, and has a rated working pressure of at least 125 psi at a temperature of 82°C. Installation is straightforward: ensure a proper seal and test the connection by slowly turning on the water. Wipe the connection points dry, then double-check to confirm that everything is secure and remains dry.
The entire installation process consists of just four steps: preparing your tools, preparing the water outlet, attaching the shower hose (using plumber’s tape and a washer), and checking for leaks. Ensuring a proper seal and testing with a slow flow of water is both simple and reliable. Finally, wipe down the connection points and inspect the showerhead; if everything remains dry, the installation is secure and reliable.
FAQ
How long does the job take?
Most homeowners can complete the task in just a few minutes. The entire process consists of four steps: preparing the tools, handling the outlet, connecting the hose, and performing a leak test. With proper preparation and a slow, careful check when turning on the water, you can ensure a completely leak-free installation.
Which thread size fits a standard shower arm?
Water supply pipes typically have a diameter of 1/2 inch, though 3/4-inch pipes are also sometimes used. A G1/2-sized fitting is compatible with most standard shower arms. Before purchasing an adapter, homeowners should verify the thread size.
When should someone replace a shower hose?
You should replace a shower hose if its braided layer shows signs of wear, the inner core develops cracks, or if the connection continues to drip even after the sealing tape has been reapplied. Installing a new shower hose ensures a tight, secure seal at all connection points. Before making a purchase, be sure to verify that the thread size is compatible with both your showerhead and the water outlet.
