When it comes to public restrooms, ADA regulations under sections 607.6 and 608.6 set the minimum required length for a hand‑held shower spray hose at 59 inches. This rule was put in place so people with disabilities can easily reach running water, whether they shower sitting down or standing. But why exactly 59 inches? And how will this minimum hose length change the way you plan out your shower setup?
Key Takeaways
- ADA standards require hand held shower spray hoses installed in public restrooms to measure at least 59 inches long.
- This length gives seated shower users enough reach to wash their whole body safely, supporting greater independence and comfort during bathing.
- Choose a durable, flexible hose and follow correct installation practices to stay ADA‑compliant and keep consistent water flow.
Hand Held Shower Spray Hose: Minimum Length and ADA Shower Requirements
Why 59 Inches?

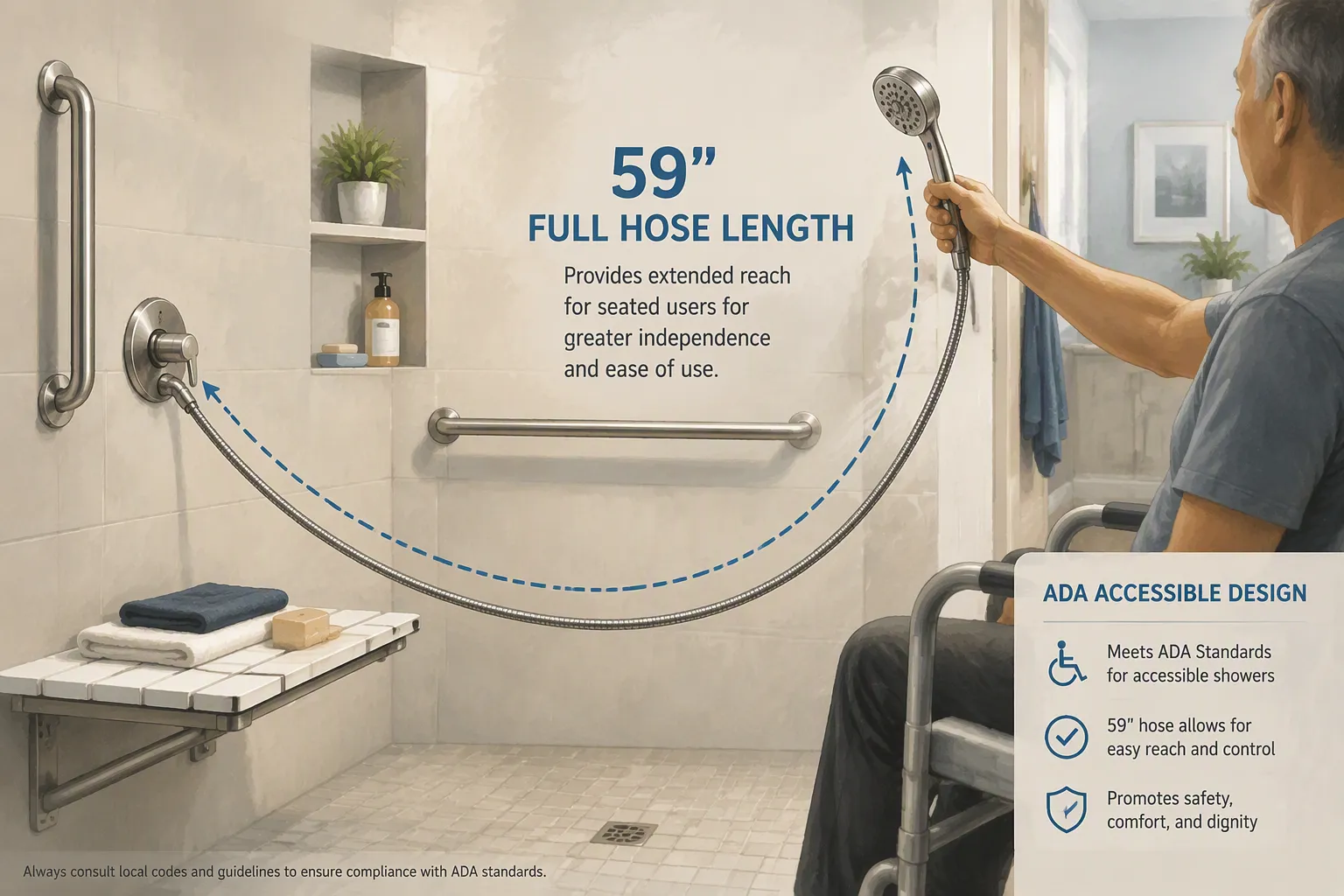

The 59‑inch measurement is far from a random number. ADA shower requirements were written around the real‑world needs of disabled bathers. If someone sits on a shower bench or transfer chair, they need enough slack on their hose to direct water across their whole body, without over‑stretching or putting themselves in unsafe positions. Both Section 607.6 for transfer‑type showers and Section 608.6 for roll‑in accessible showers enforce this same 59‑inch minimum. Having one uniform rule for different shower layouts helps make restrooms usable for everyone.

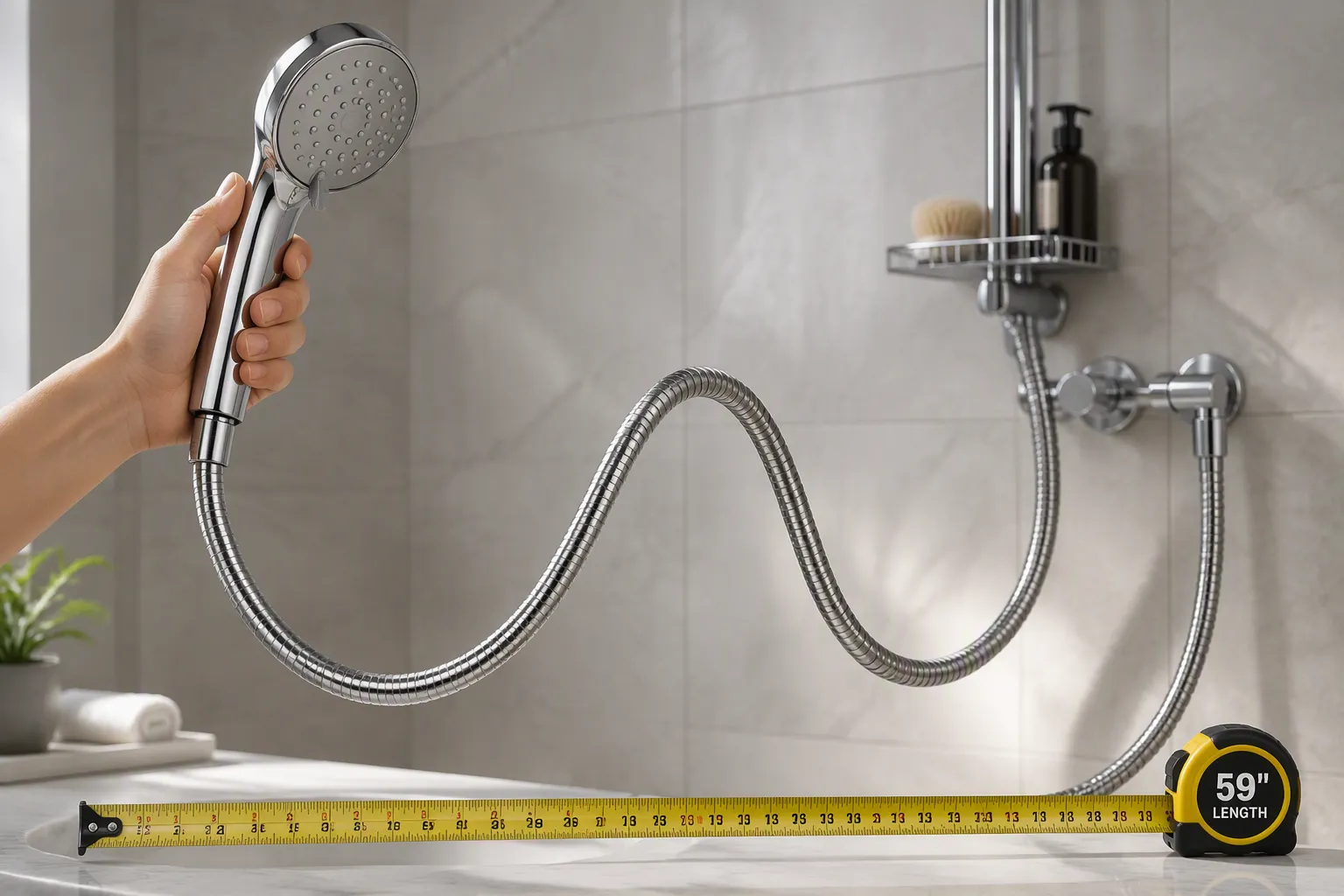

Keep one important measurement detail in mind: length is calculated from the water outlet to the spray head itself. Fittings on both ends of the hose do not count toward this measurement. Once connectors are attached, the usable length you actually get will shrink slightly. Remember that 59 inches is only a minimum requirement, not a hard cap. Longer hoses are fully permitted under ADA guidelines. Manufacturers such as GONGGONG supply custom‑length shower hoses, so installers can meet ADA standards while fitting unique project layouts.
Handheld Shower Spray Usability
A 59‑inch hose serves two practical purposes that make accessible bathroom designs work well. The detachable spray head should work in two modes: fixed overhead shower, and free‑moving handheld spray. When clipped into its wall bracket, it functions just like a standard stationary showerhead. Once you take it off the holder, the extra hose length lets seated users reach their legs, feet and back without shifting their body too much.
The California Building Code also recognizes this dual‑use feature. It states that a flexible hand‑held shower spray unit with a minimum 59‑inch hose may operate both as a fixed showerhead and a handheld sprayer. This standard lets bathers clean their full body comfortably, while staying in a seated position or making only small standing movements.
There are extra reach rules to pair with hose length. ADA Standards §608.4.1 requires shower faucets, controls and spray units to sit 38–48 inches above the finished shower floor. The horizontal distance from the wall’s control centerline can not go past 15 inches. These height and distance rules work together with hose length to build a fully accessible shower space.
Exception to 608.6: Outside of medical facilities, long‑term care centers, overnight lodging guest rooms and residential housing, installers can fit a fixed showerhead mounted no higher than 48 inches (1220 mm) above the shower floor as an alternative to a hand‑held spray unit.
This exception only applies to a narrow set of non‑residential locations. For most showers built to serve people with mobility challenges, the 59‑inch hose rule still applies. Even if your hose hits the minimum length mark, poor flexibility can create kinks that cut water pressure and block water flow. Hose material quality matters just as much as length when you build a fully usable accessible shower.
Practical Installation & Hose Selection for Hand Held Shower Spray Hose
Water Flow and Hose Flexibility
Your shower hose material directly impacts water delivery. Braided stainless‑steel hoses typically last three to five years longer than budget PVC options, resist kinking and deliver steady water pressure. Nylon‑braided hoses strike a solid balance between sturdiness and flexibility. Their smooth outer surface lowers the risk of scratching bathroom fixtures, making them a great fit for accessible showers.
Inner hose liners also change long‑term performance:
- EPDM liners handle hot and cold water temperature shifts well
- PEX inner cores deliver higher pressure resistance
- PE‑RT liners offer outstanding flexibility
All these liner types maintain reliable water flow once the hose meets the 59‑inch minimum requirement. Flexible construction prevents sharp bends that choke water flow. When a hose kinks, shower pressure drops very quickly. Premium‑grade materials hold their original shape through repeated temperature changes and keep your handheld spray running smoothly. Proper installation avoids tight stretches and sharp bends that restrict water movement. Matching the correct hose material with ADA‑approved length creates consistent, long‑lasting water performance.
Choosing the Right 59 Inch Hose
ADA compliance goes beyond checking your hose length. Your shower spray head must come fitted with a non‑positive shut‑off valve. This fitting keeps a tiny trickle of water running even after you turn the spray head off, which stops contaminated water from siphoning backward into your fresh water supply. This rule is outlined under ADA Standards sections 607.6 and 608.6.
Mount your spray head at a height between 38 inches and 48 inches above the shower floor. The 38‑inch minimum mounting height guarantees seated bathers can reach the spray head comfortably. Following ADA installation specifications helps you avoid most common setup mistakes.
As an experienced manufacturer, GONGGONG builds hand held shower spray hoses in custom lengths and diameters that easily hit the 59‑inch compliance threshold. Their products balance flexibility and structural strength to cut down on flow‑blocking kinks. Custom‑sized hoses remove the need to forcefully stretch tubing during installation. Two very common installation mistakes are using a hose shorter than 59 inches and mounting your spray head outside the user’s comfortable reach zone. Always measure from the water outlet all the way to your spray‑head body during installation. By following all these ADA shower guidelines, your finished shower will meet accessibility requirements.
The 59‑inch minimum hose requirement gives people living with disabilities far more bathing independence. With this specification in place, users can direct water over their body without needing to stand up, supporting safe, self‑managed personal care. Contractors should cross‑check all completed shower builds against ADA accessibility rules. Reliable hoses from trusted suppliers like GONGGONG are an easy way to satisfy the 59‑inch length requirement.
FAQ
What happens if the hose is shorter than 59 inches?
A hose shorter than 59 inches fails ADA rules. People sitting cannot reach all body parts. Water cannot safely cover the whole body.
Can I use a hose longer than 59 inches?
Yes. ADA rules set 59 inches as the minimum. Longer hoses provide extra reach without breaking shower rules.
